EC2 instances, RDS database and many other resources reside in VPCs. To access them we need a network connectivity – either through a VPN, Direct Connect, or through a Jump / Bastion Host. That’s stating the obvious.
Sometimes, however, it’s inconvenient or difficult to achieve a direct connectivity ad-hoc – maybe you are in a location where your VPN is filtered, or from where the Bastion host Security Group won’t allow access but you still need access to the RDS for example.
ssm-tunnel comes to the rescue
ssm-tunnel makes a creative use of the AWS Systems Manager (SSM) Session protocol to tunnel IP traffic between your laptop and your VPC. It is even encrypted so we can call it a SSM VPN 🙂
The only requirements are:
- Linux EC2 instance registered in AWS Systems Managers (SSM) in the target VPC
- Linux laptop (or Linux VM if you’ve got Windows or Mac OSX laptop) with aws-ssm-tools package that provides the script
ssm-tunnelfrom pip and SSM Session Manager plugin installed.
To get started refer to my other post about ssm-session script. From now on I assume that you’ve got all the connectivity, SSM permissions, plugins, etc sorted. Also create a new Amazon Linux 2 EC2 instance, t3.nano is good enough and make sure you can successfully login to it with
(laptop) ~ $ sudo pip3 install aws-ssm-tools (laptop) ~ $ ssm-tunnel some-instance --route 172.31.0.0/16

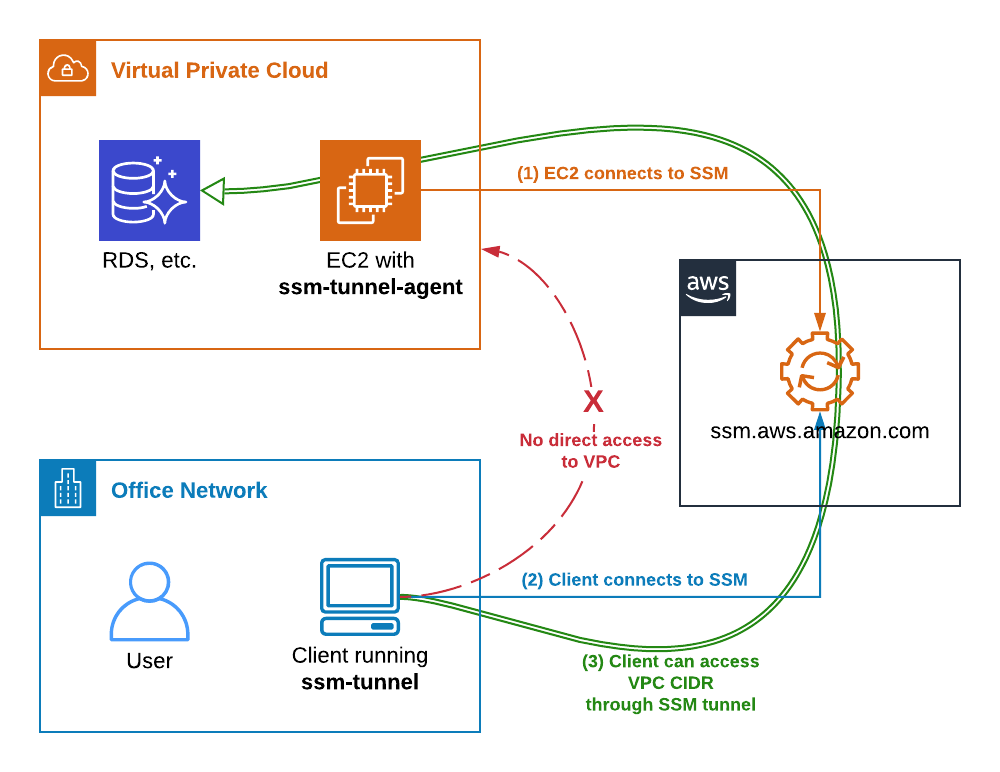

Here is how it works:
- EC2 instance connects to AWS SSM service and awaits instructions.
- On the laptop we start
ssm-tunnelthat also connects to AWS SSM service and requests a SSM Session to the instance.
- ssm-tunnel starts
ssm-tunnel-agenton the EC2 instance. Both ends configure an IP tunnel, routing, packet forwarding, NAT and DNS to enable transparent access to the VPC address range.
- Traffic starts passing through the tunnel and we can access any resource in the VPC, provided the Security Groups permit it of course.
Bring it up!
Here is how we start a SSM tunnel to a VPC through a brand new EC2 instance. At first it won’t work because the ssm-tunnel-agent isn’t installed.
(laptop) ~ $ ssm-session --list i-0123456789 ip-172-31-21-30.compute.internal some-instance 172.31.21.30 (laptop) ~ $ ssm-tunnel some-instance [ssm-tunnel] ERROR: Unable to establish the tunnel! [ssm-tunnel] ERROR: ssm-tunnel-agent: command not found on the target instance i-0123456789. [ssm-tunnel] ERROR: Use 'ssm-session i-0123456789' and then run 'sudo pip install aws-ssm-tunnel-agent' to install it.
Let’s follow the instructions and install the agent. If python’s
pip isn’t install it too. Use ssm-session to do the work.
(laptop) ~ $ ssm-session some-instance Starting session with SessionId: botocore-session-1563416403 sh-4.2$ sudo pip install aws-ssm-tunnel-agent sudo: pip: command not found sh-4.2$ sudo yum install -y python-pip ... Installed: python2-pip.noarch 0:9.0.3-1.amzn2.0.1 Complete! sh-4.2$ sudo pip install aws-ssm-tunnel-agent Collecting aws-ssm-tunnel-agent Downloading https://files.pythonhosted.org/packages/75/.../aws_ssm_tunnel_agent-0.9.6-py2.py3-none-any.whl Installing collected packages: aws-ssm-tunnel-agent Successfully installed aws-ssm-tunnel-agent-0.9.6 sh-4.2$ exit Exiting session with sessionId: botocore-session-1563416403.
Ok, the agent is now installed and we should be able to start the tunnel. Assuming the VPC CIDR is
172.31.0.0/16 let’s run this command:
(laptop) ~ $ ssm-tunnel some-instance --route 172.31.0.0/16 [sudo] password for mludvig: 00:02:04 | In: 312.0 B @ 5.2 B/s | Out: 5.9kB @ 121.3 B/s
Why does it ask for a sudo password you ask? Because it needs to configure a local tunnel network interface and routing – use
--verbose to see the actual commands it runs.
If we look at the local interfaces on the laptop or VM we will see one named
tunSSM.XXX.XXX with ip address from the range 100.64.0.0/16:
(laptop) ~ $ ip addr show ... 69: tunSSM.44.112: <POINTOPOINT,MULTICAST,NOARP,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 500 link/none inet 100.64.44.112 peer 100.64.44.113/32 scope global tunSSM.44.112 valid_lft forever preferred_lft forever
A similar interface has by now been created on the EC2 instance. Check it out with
ssm-session if you like.
Now have a look at the local routing table:
(laptop) ~ $ ip route show | grep tunSSM 172.31.0.0/8 via 100.64.44.113 dev tunSSM.44.112 100.64.44.113 dev tunSSM.44.112 proto kernel scope link src 100.64.44.112
All the traffic for the VPC CIDR 172.31.0.0/16 will go out through the tunnel, that’s what we wanted.
The tunnel should now be set up.
Traceroute to the VPC IGW is a good test…
(laptop) ~ $ sudo traceroute -I 172.31.0.1
traceroute to 172.31.0.1 (172.31.0.1), 30 hops max, 60 byte packets
1 100.64.44.113 (100.64.44.113) 85.552 ms 86.333 ms 85.460 ms
2 * * *
3 172.31.0.1 (172.31.0.1) 89.817 ms 88.356 ms 89.707 ms
Now you should be able to SSH to some other instance in the VPC or connect to an RDS if the security groups permit. More on this later.
EC2 instance and Security Groups
The remote agent automatically configures the instance as a tunnel endpoint.
- Creates tunSSM interface
- Enables packet forwarding
- Configures NAT of all the traffic from the tunnel to the VPC
The last point is important to understand – everything that comes out from the tunnel appears to come from the instance. That means that Security Groups and NACL rules apply! If for example your RDS only permits access from a certain EC2 instance you may not be able to connect to it through the tunnel! In other words – the SSM Tunnel instance must have access to the resources you want to connect to.
What about DNS?
What if we’ve got a VPC-private DNS zone that we need to resolve from the laptop, say
One option is to change the nameserver in
/etc/resolv.conf to 172.31.0.2 (or whatever your VPC DNS is). That will however send all the DNS traffic over the tunnel, that’s not desirable.
A better option is to use the bundled
~/.local/bin/ssm-tunnel-updown.dns-example, copy it to
~/bin/ssm-tunnel-updown.dns-yourdomain and modify to your needs. Namely update the
Also download and install the required
update-systemd-resolved script from github. It makes use of systemd-resolved local resolver which is used by default in pretty much all modern Linux distributions and instructs it to resolve the domains specified in
$DNS_DOMAINS using the nameservers from
$DNS_SERVERS. Everything else will still be resolved through the default nameserver.
(laptop) ~ $ ssm-tunnel some-instance --route 172.31.0.0/16 \ --up-down ~/bin/ssm-tunnel-updown.dns-example <14>Jul 18 15:24:26 update-systemd-resolved: Link 'tunSSM.44.112' coming up <14>Jul 18 15:24:26 update-systemd-resolved: Adding IPv4 DNS Server 172.31.0.2 <14>Jul 18 15:24:26 update-systemd-resolved: Adding DNS Routed Domain example.com <14>Jul 18 15:24:26 update-systemd-resolved: Adding DNS Routed Domain vpc-only.example.com 00:52:28 | In: 3.1kB @ 0.0 B/s | Out: 89.7kB @ 0.0 B/s
Give it a try!
Now we’ve got a complete network access to the VPC, including DNS with very little setup needed. No VPNs, no bastion hosts, no public IPs.
It’s not particularly fast – my tests show around 40kB/s, but it’s certainly very convenient and easy to set up even for ad-hoc access.
Give it a try 🙂
